Air Shock Absorbers

Index Our Products Air Suspensions Model YS-2-147V

Model YS-2-147V

Air Shocks

Product Manual Spec/Size
  • Burst air pressure: Over 15kg/cm²。
  • Customerized is acceptable。
  • Various models and sizes are available，please ask sammi@ys-air.com。

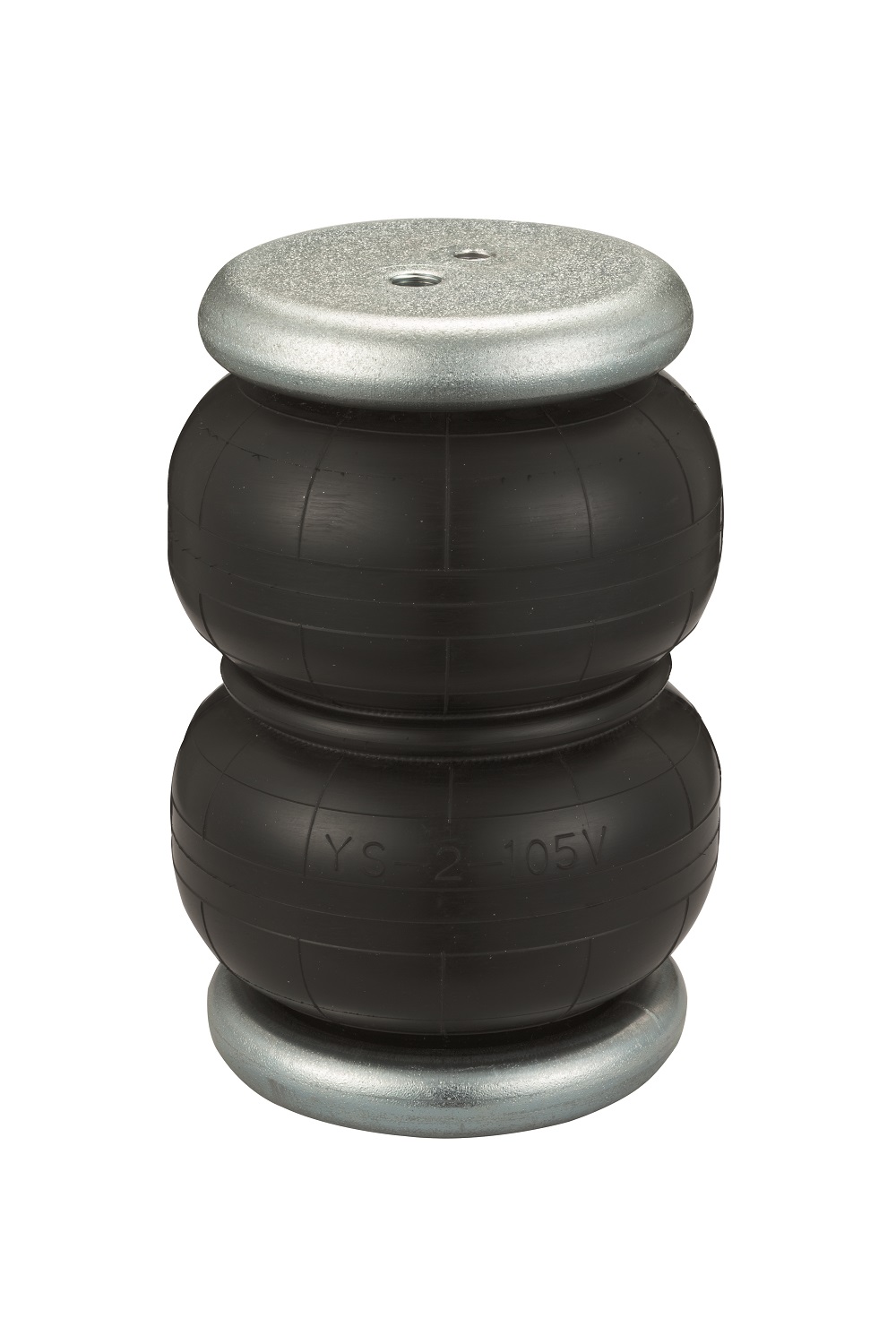

Order No: YS-2-105V/ No.1

Static Data/ Max.Diamter: 123mm

　Unit:mm 2 3 4 5 6
min 110 137 196 259 322 382
120 133 181 240 273 344
140 94 120 151 190 230
max 160 24 33 42 50 62

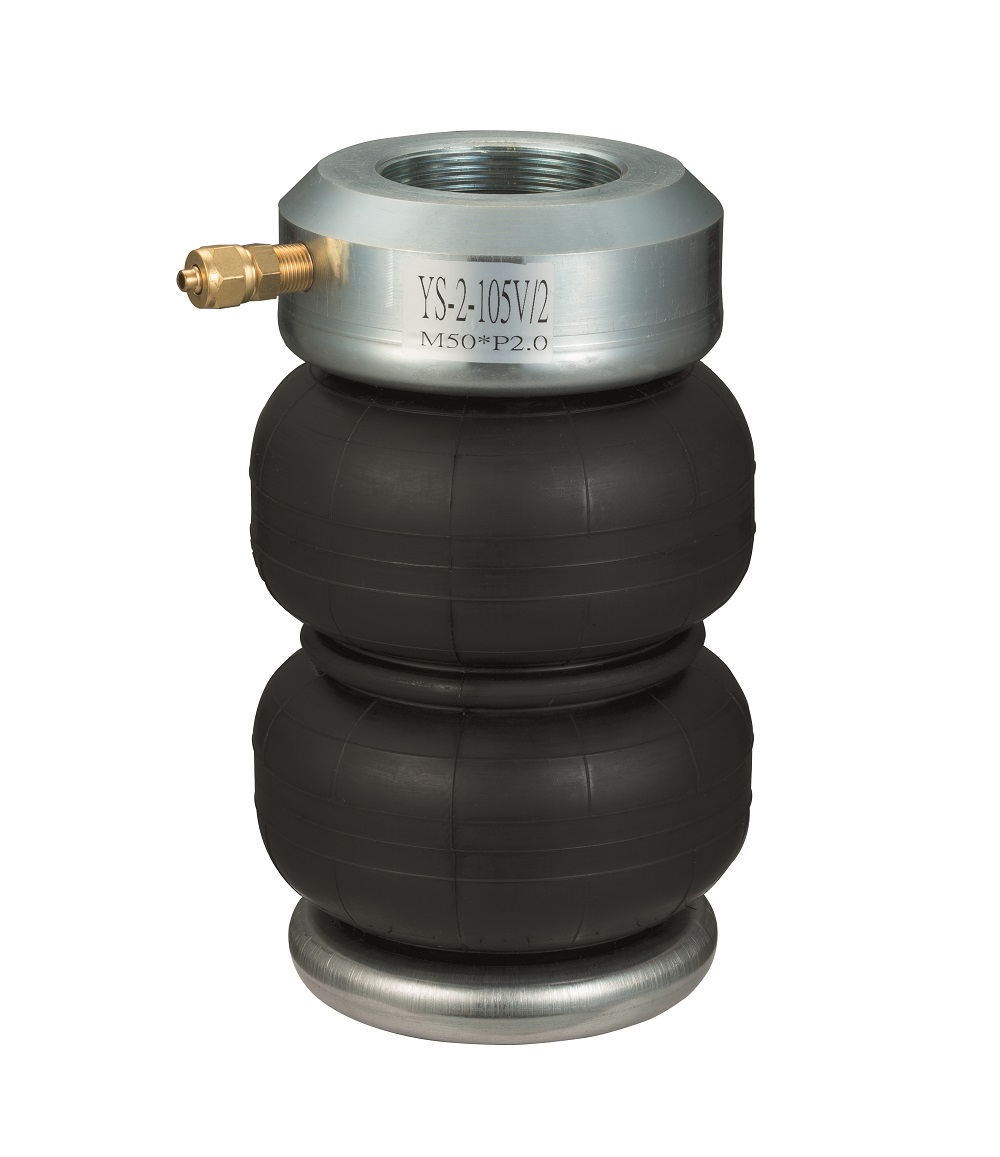

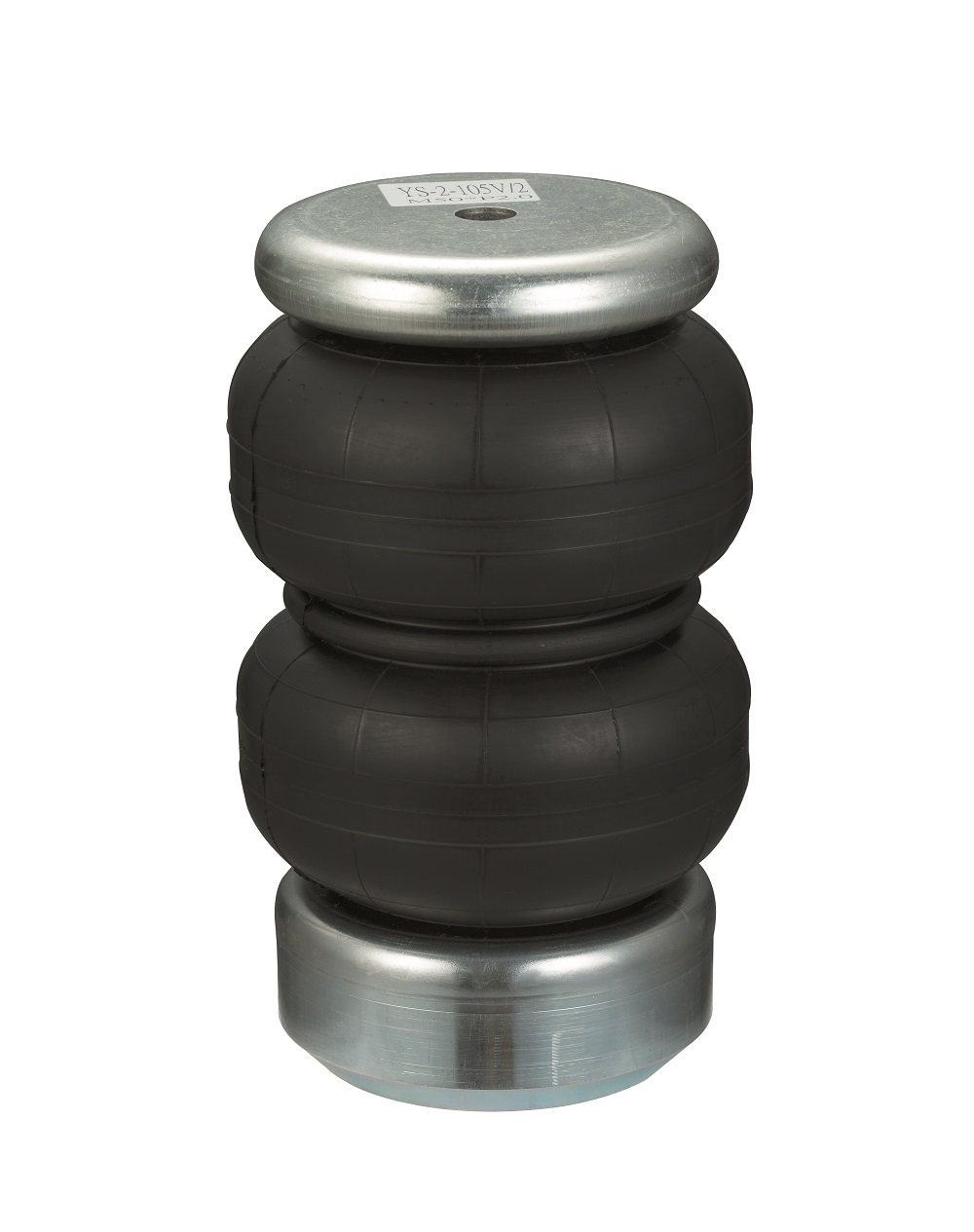

Order No: YS-2-105V/ No.2

Static Data/ Max.Diamter: 123mm

　Unit: mm 2 3 4 5 6
min 110 137 196 259 322 382
120 133 181 240 273 344
140 94 120 151 190 230
max 160 24 33 42 50 62

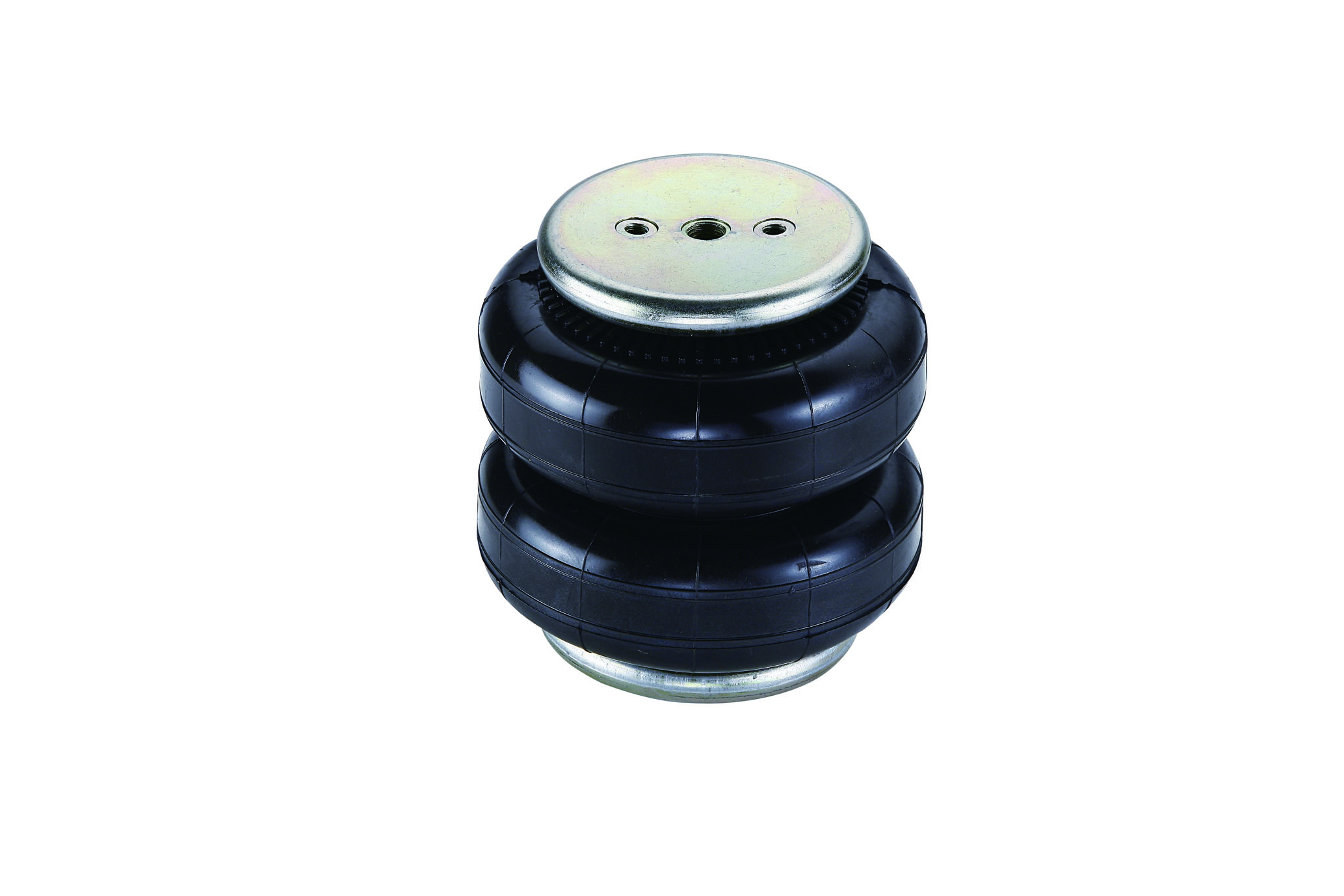

Convoluted Air Springs

Specification Table
Min Height: 2.80" (71mm)
Max Height: 6.5" (165mm)
Ride Height: 4.5"~5.5" (115~140mm)
Max. Diameter: 5.3" (134mm)		 　
Type Spec. Air Inlet
通氣孔		 Blindnut
內牙		 View
G   1/8" PT M8*P1.25

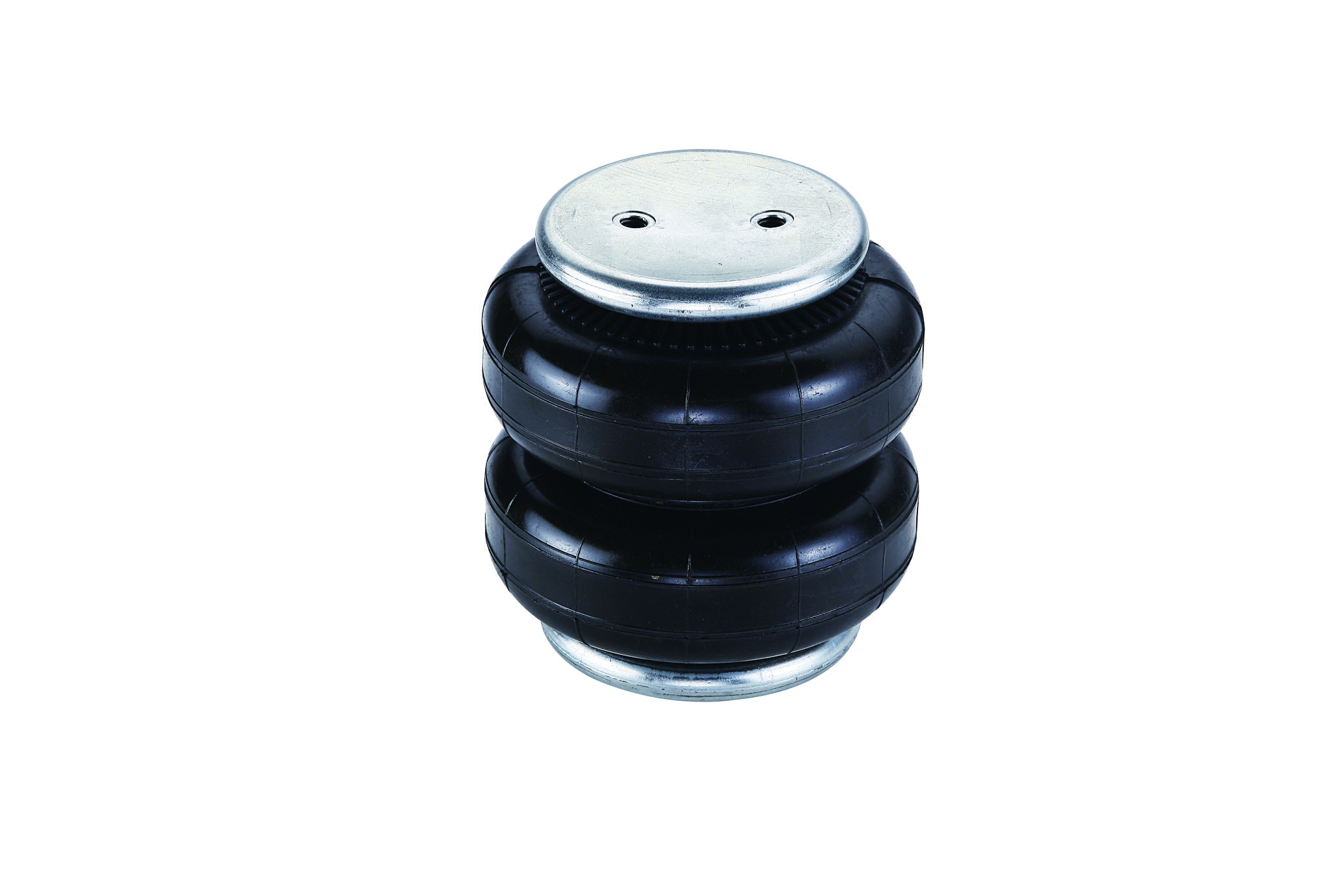

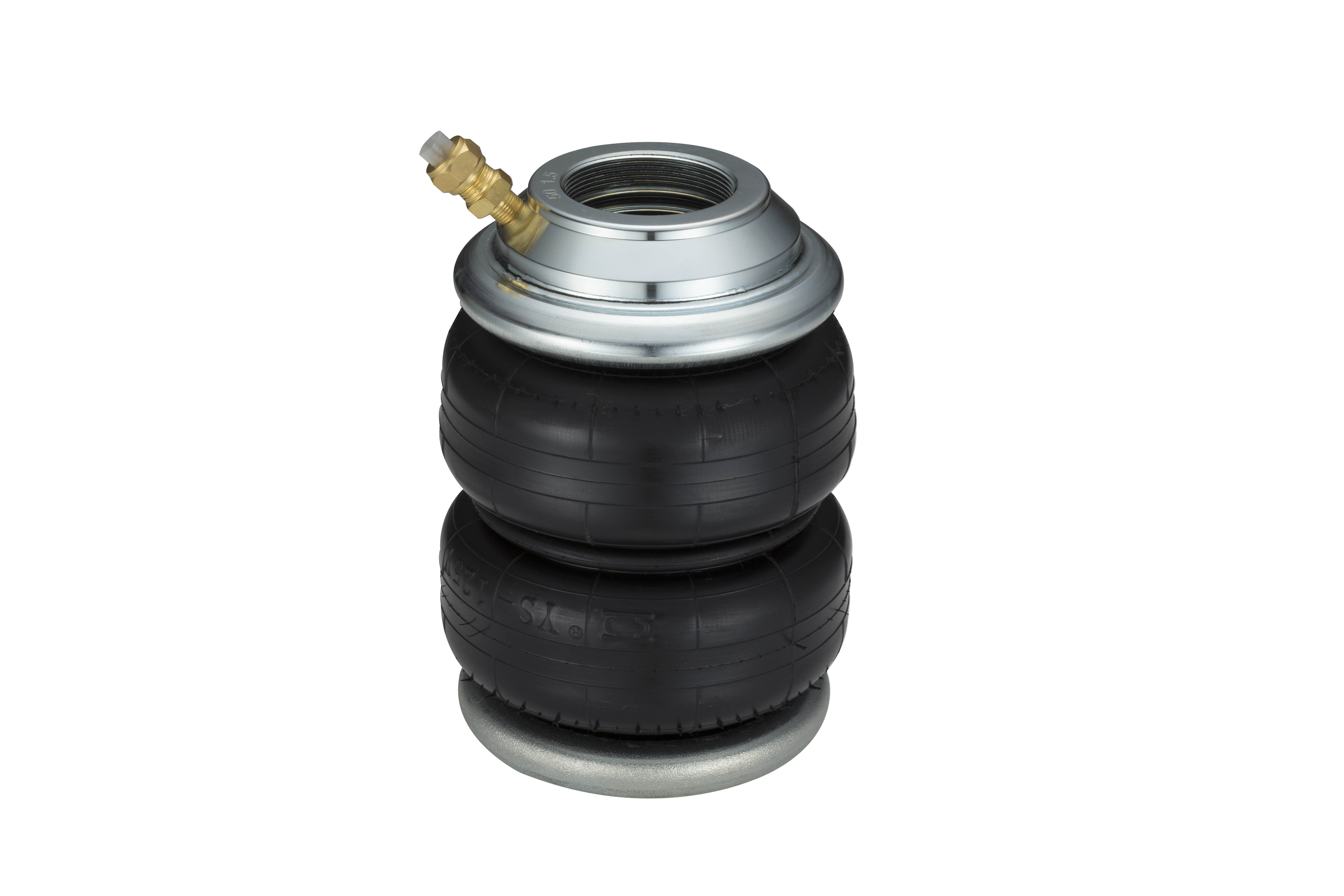

  YS-2-125V Air Springs  YS-3-125V Air Springs
Min Height: 2.80" (71mm)
Max Height: 6.7" (170mm)
Ride Height: 5"~6" (125~150mm)
Max. Diameter: 5.4" (138mm)		 Min Height: 4.70" (120mm)
Max Height: 8.8" (220mm)
Ride Height: 5.5"~9.8" (140~195mm)
Max. Diameter: 5.4" (138mm)
No 1 Plate Specification Table
Type Spec. Air Inlet
通氣孔		 Blindnut
內牙		 View
A 7003-1 1/8" PT M8*P1.25
7003-2 1/4" PT M8*P1.25
7003-3 1/8" NPT 3/8"-16
7003-4 1/4" NPT 3/8"-16
B 7004-1 1/8" PT M8*P1.25
7004-2 1/4" PT M8*P1.25
7004-3 3/8" PT M8*P1.25
7004-4 1/8" NPT 3/8"-16
7004-5 1/4" NPT 3/8"-16
7004-6 3/8" NPT 3/8"-16
D 7001-1 　 M8*P1.25
7001-2 　 3/8"-16
E 7002-1 　 M8*P1.25
7002-2 　 3/8"-16



  YS-2-125V Air Springs  YS-3-125V Air Springs
Min Height: 2.80" (71mm)
Max Height: 6.7" (170mm)
Ride Height: 5"~6" (125~150mm)
Max. Diameter: 5.4" (138mm)		 Min Height: 4.70" (120mm)
Max Height: 8.8" (220mm)
Ride Height: 5.5"~9.8" (140~195mm)
Max. Diameter: 5.4" (138mm)
No 1 Plate Specification Table
Type Spec. Air Inlet Stud View
C 7007-1 1/8" PT M8*P1.25*20
7007-2 1/4" PT
7007-3 3/8" PT
7007-4 1/8" NPT 3/8"-16*3/4
7007-5 1/4" NPT
7007-6 3/8" NPT
7007-7 3/8" PT
F 7006-1 　 M8*P1.25*20
7006-1 　 3/8"-16*3/4
